CORAL 1080 Traffic Control Post



1.
General System Description

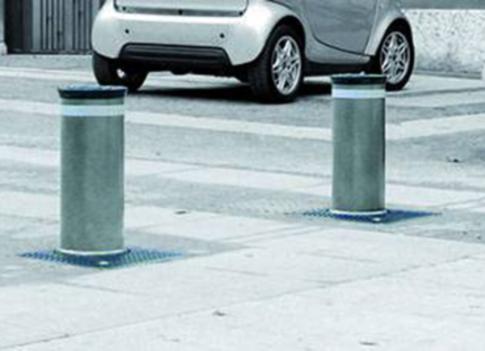

CORAL 1050 is Fully Retractable Oil Hydraulic Traffic Control Post for traffic control. The cylindrical post is made of steel, has a diameter of 100mm.

2.
Features
  • 800mm stroke.
  • The retractable Post is 5mm thick.
  • All the essential components parts are inside the location enclosure , which is made of cataphoresis treated steel, especial treatment to prevent rust and designed to be sunk into the ground .
  • The up and down movements are carried out by the piston shaft directly connected to the top of the post inside the unit.
  • The upper limit stroke , the motor is stopped be means of a water -tight fully sealed limit switch ( limit switch rising) on descending the motor is stopped when the post reaches the end of the permitted down stroke.
  • A brim is fitted to protect the top edge of the post.
  • A back reflecting sticker with red and yellow strips , ensures full visibility of the post in daylight as well as in the dark
  • A manual over -ride is standard allows the post to be lowered manually by means of a spanner in case of emergency.
  • Safety Accessories:
    1. (2) Pair of Photocell for Safety.
    2. Flashing Lamp.
    3. Emergency siren detector.
3.
Technical Data

Electric Motor:

  • Power Output 0.25 KW (0.33HP)
  • Supply Voltage 230 V.
  • Frequency 50 Hz
  • Absorbed Current 1.8 A
  • Absorbed Power 330 W
  • Motor Rotation Speed 2800 r.p.m.
  • Intermittent Service S3

Hydraulic Motor Pump:

  • Hydraulic Pump P 10
  • Pump Flow Rate 4.45 I / min
  • Mean Working Pressure 2 MPa (20 Bars)
  • Max. Pump Pressure 4 MPa (40 Bars)
  • Working Temperature -200 C + 800 C
  • Type of Oil OIL A 15 - by AGIP
  • Static Weight 10 Kg.
  • Protection Standard IP 54

Oil - Hydraulic Pistons:

  • Piston Diameter 30 mm
  • Shaft Diameter 16 mm
  • Travel Time 6 sec
  • Pre-set Pushing Power 15 daN
  • Piston Stroke 800 mm

Performance:

  • Duty Cycle 6 s Rise - 30s Dwell - 6s Lower - 30 s Dwell
  • Complete Weight 104 Kg
  • Post Color RAL 7016 -Grey.
  • Complete Protection Classes IP 557
4.
Standard Optional Accessories
  • Push Button.
  • Key Switch.
  • Remote Control Unit.
  • Magnetic Loop Detector
